Lift And Slide – 85mm

Technology that stands out
Sliding Door

Top-rated 85mm Lift And Slide Door

Harmonious appearance

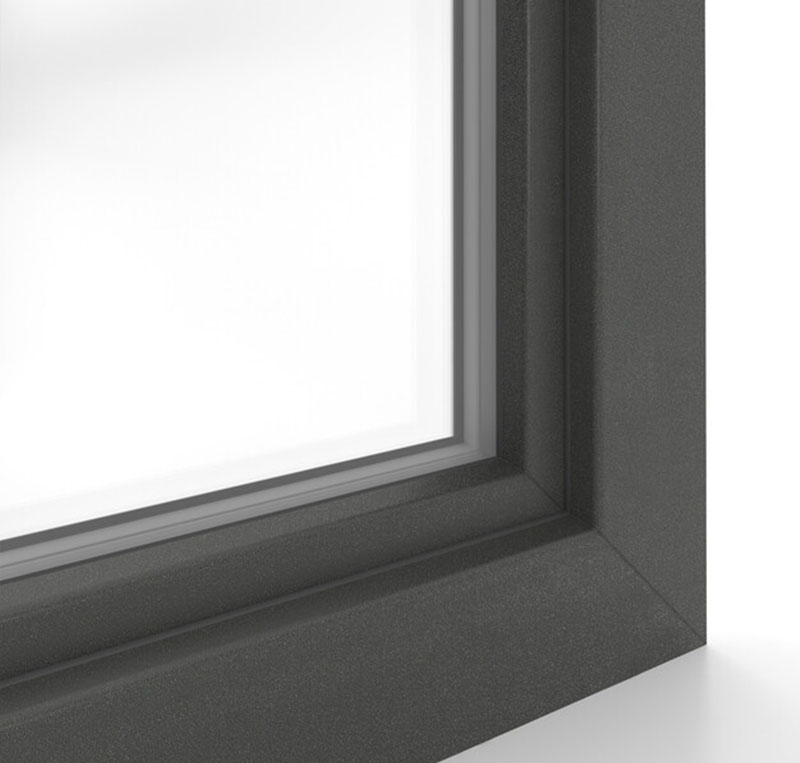

The aluplast sliding door vario-slide is a guarantee for rooms flooded with light. The system was designed to be particularly suitable for the Mediterranean, tropical countries and to meet country-specific requirements.

It doesn’t get any better: the 85 mm lift-and-slide door from aluplast impresses with its high energy efficiency and user-friendliness: even at its maximum size of 6.50 m x 2.80 m, the door can be opened and closed without effort and ensures a smooth and barrier-free transition to the outside. It has been tested under extreme conditions: whether it is driving rain, storms or any other extreme weather conditions: the aluplast lift-and-slide uPVC door keeps everything out.

Technology that stands out

Outstanding certified values in terms of wind and water tightness, burglary resistance and acoustic insulation even at maximum sizes – unique in the field of lift-and-slide doors!


Technical details

The elegant connection between inside and outside

Let the sunshine in! The new lift-and-slide uPVC door 85 mm creates light-flooded rooms and ensures you enjoy beautiful views over your natural surroundings thanks to very wide opening angles. It has been designed especially as a door for patios, balconies and gardens. Another advantage is its space-saving design: The sash slides parallel to the fixed pane of glass, which means it does not occupy any extra space. The result? Spacious room designs with added value in terms of living comfort!

Technical Details

Basic
  • 85 mm construction depth
  • Uf=1.6 W/m²K
  • Uw=0.92 W/m²K with standard-triple-glazing with Ug=0.6 and Psi=0.040 W/mK
  • Uw=0.76 W/m²K best possible option with triple-glazing with Ug=0.4 and Psi=0.030 W/mK
  • threshold
  • Aluminium guide rail
  • Up to RC2 burglary protection
  • Up to 44 dB sound insulation (sound insulation class 4)
  • Up to 51 mm glazing
  • Wide range of lamination options
  • Available with aluskin® aluminium shells (wide array of colours)
  • Concealed drainage is possible
  • Barrier-free option
  • fixframe option



  • 85 mm construction depth
  • Uf=1.3 W/m²K
  • Uw=0.87 W/m²K with standard-triple-glazing with Ug=0.6 and Psi=0.040 W/mK
  • Uw=0.71 W/m²K best possible option with triple glazing with Ug=0.4 and Psi=0.030 W/mK
  • Thermally-broken threshold
  • Aluminium guide rail
  • Up to RC2 burglar protection
  • Up to 44dB
  • Up to 51mm glazing
  • Wide range of laminations available
  • Available with aluskin® aluminium shells (wide array of colours)
  • Concealed drainage is possible
  • Barrier-free option
  • Optional fixframe
  • 85 mm construction depth
  • Uf = 1.1 W/m²K
  • =0.80 W/m²K with standard-triple-glazing with Ug=0.6 and Psi=0.040 W/mK
  • Uw=0.63 W/m²K best possible option with triple glazing with Ug=0.4 and Psi=0.030 W/mK
  • Threshold made of glass fibre reinforced uPVC
  • Guide rail made of glass fibre reinforced uPVC
  • Up to RC2 burglary protection
  • Up to 44 dB sound insulation (sound insulation class 4)
  • Up to 51 mm glazing
  • Wide range of lamination options
  • Available with aluskin® aluminium shells (wide array of colours)
  • Concealed drainage is possible
  • Barrier-free option
  • Fixframe option
